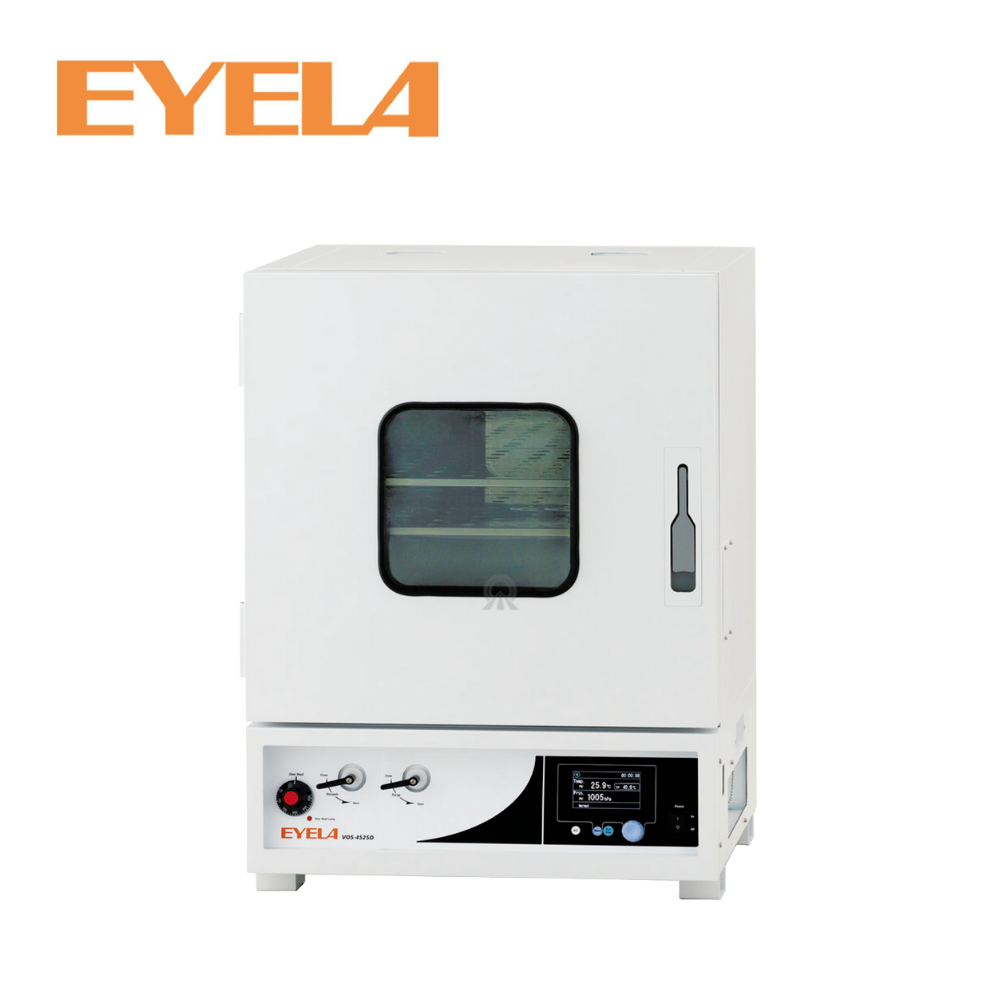

EYELA｜Vacuum Oven
Feature :
- Microprocessor-controlled program enables digital timer for auto-start / auto-stop, 2 steps repeat operation, 8 steps program, and 24 hours cycling operation.
- Overheat protector which is independent from temperature controller is equipped.
- Temperature compensation function is incorporated.
|
Model |
VOS-451SD |
VOS-601SD |
|
Heating method |
Chamber heating |
|
|
Temp. control range |
40 ~ 210℃ |
40 ~ 200℃ |
|
Temp. control accuracy |
± 1.0℃ (at 210℃) |
± 1.0℃ (at 200℃) |
|
Max. temp. reaching time |
80 min (40→210℃) |
110 min (40→200℃) |
|
Ultimate vacuum |
1 hPa (0.75 Torr) |
|
|
Program functions |
Timer (Auto start / stop), Repeat (2 step), Step program (max. 8 steps), 24 hours cycling operation |
|
|
Safety functions |
Self-diagnosis (senser alarm, overheat alarm, power failure alarm, door alarm, setting value missing alarm, temp. limitation alarm), leak / overcurrent braker, independent overheating protector (VOS-452SD: 50 ~ 270℃, VOS-602SD: 50 ~ 260℃) |
|
|
Chamber dimensions (W x D x H) |
450 x 450 x 450 mm |
600 x 600 x 600 mm |
|
Chamber capacity |
91 L |
216 L |
|
Shelf |
3 pcs. |
4 pcs. |
|
Observation window (W x H) |
250 x 250 mm |
430 x 430 mm |
|
Dimensions (W x D x H) |
655(673) x 597(622) x 905 mm |
860(878) x 780(805) x 1720(Trolley included) mm |
|
Weight |
120kg |
300kg |
