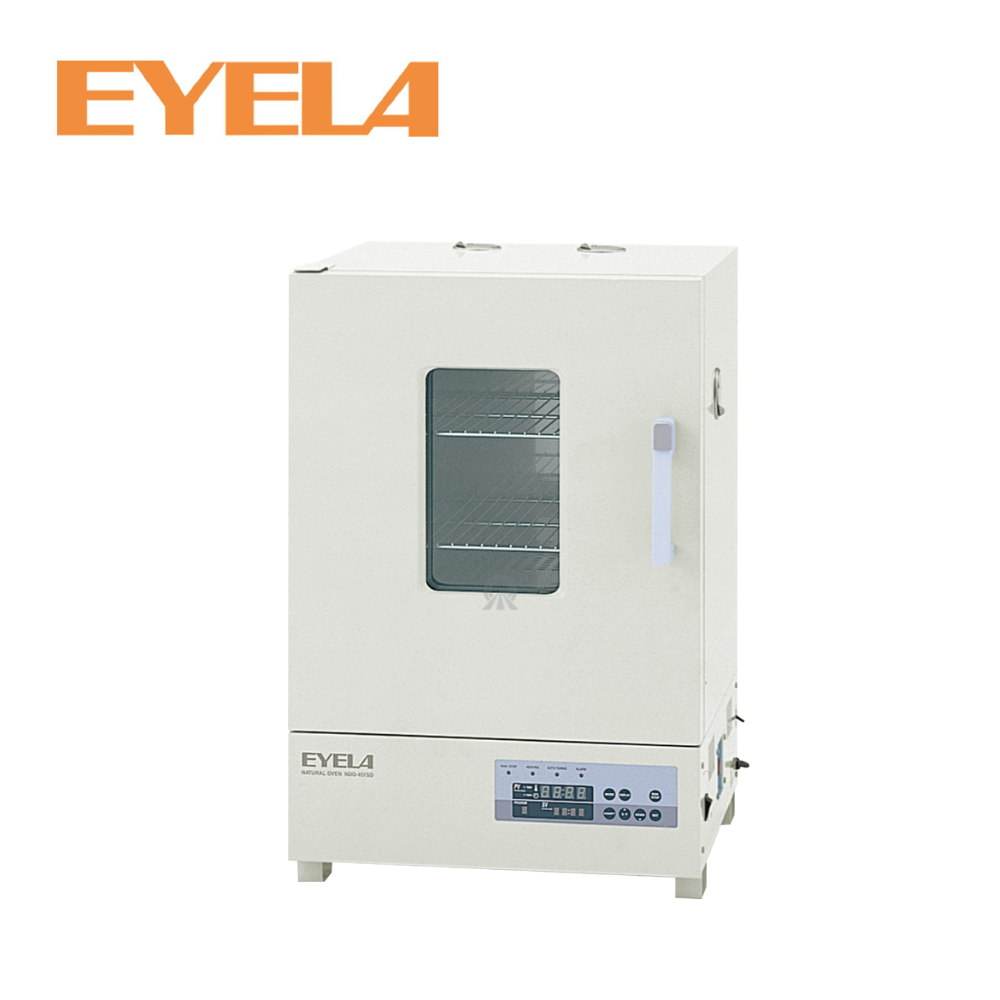

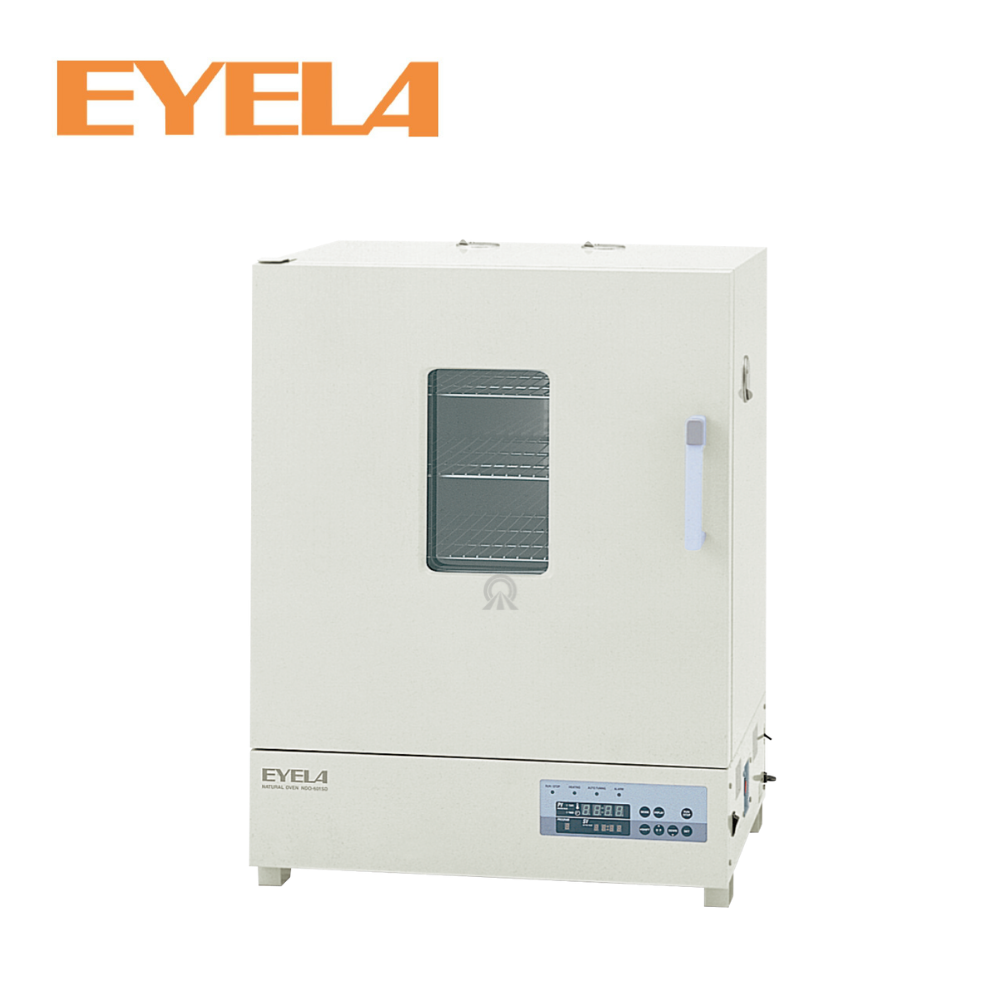

EYELA｜Convection Oven
Feature :
- Microprocessor P.I.D control with auto tuning function controls temperature setting and time precisely.
- Built-in program of 7 patterns and max. 8 step program
- Timer (Auto start / stop) function is equipped.
- Temperature compensation function is provided.
- Independent overheat protector is provided.
|
Model |
NDO-451SD |
NDO-601SD |
|
Air circulation |
Natural convection |
|
|
Temp. control range |
40 ~ 250℃ |
|
|
Temp. control accuracy |
± 1℃ (at 100℃) |
|
|
Temp. deviation |
9℃ / 20℃ (at 100℃ / 200℃) |
|
|
Max. temp. reaching time |
60~70 min |
80~90 min |
|
Program functions |
Timer (Auto start / stop)，repeated operation, step program (max. 8 steps)，Gradient control (10 segments) |
|
|
Chamber dimensions |
W450 x D450 x H400 mm |
W600 x D500 x H500 mm |
|
Chamber capacity |
81L |
150L |
|
Shelf |
2 pcs. |
3 pcs. |
|
Observation window |
W180 x H300 mm |
|
|
Dimensions |
W550(577) x D560(625) x H820 mm |
W700(727) x D610(675) x H920 mm |
|
Weight |
58kg |
82kg |
