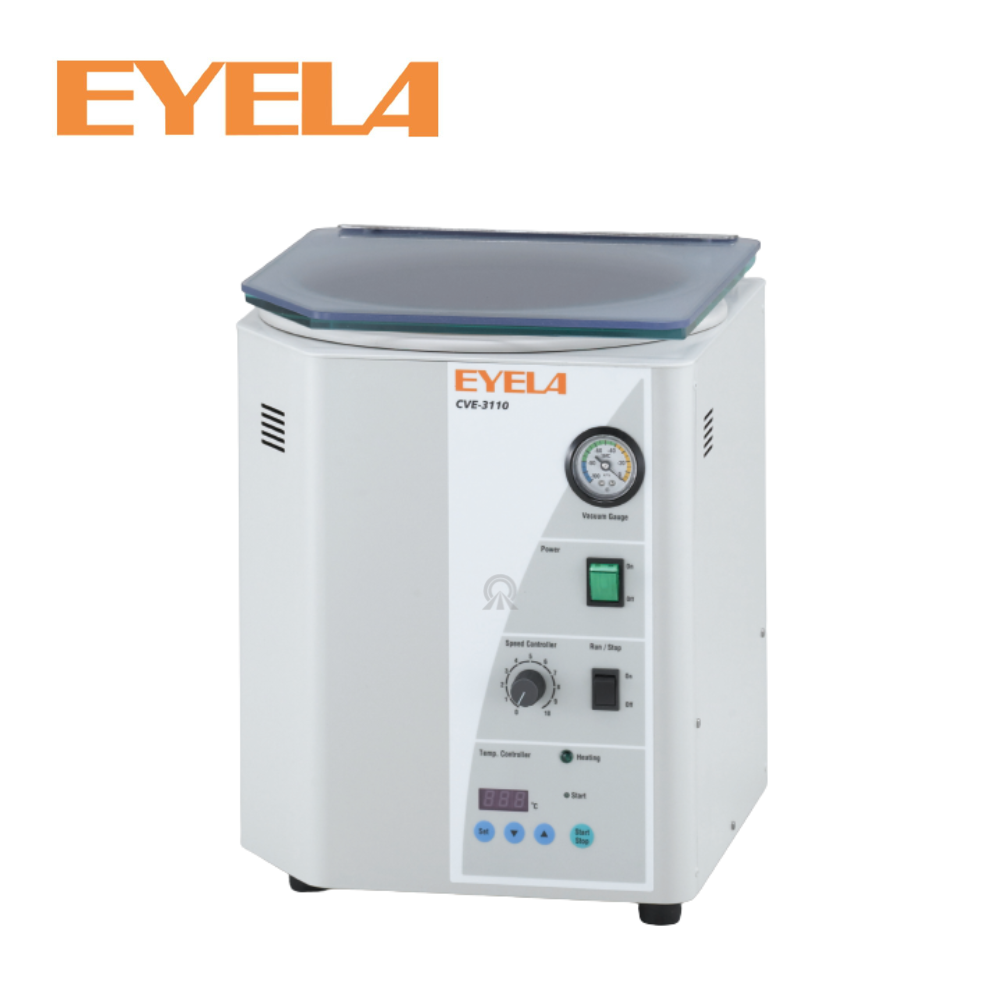

EYELA｜Centrifugal Evaporator║All Series
Feature :

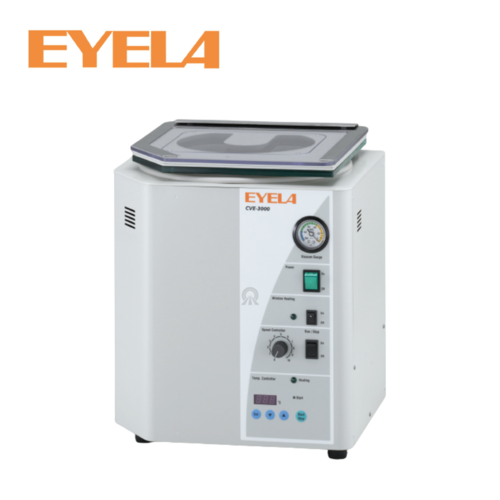

- The unit is equipped with heater to allow RT+5 to 80℃ temperature range. Temperature setting / display by digital system. CVE-3000 build-in cooling coil enables cooling from 4℃; providing low temperature concentration of heat sensitive samples..
- Different rotors are available for 1.5ml microtube and for test tubes. Microplate rotor can be selected in CVE-3000 and CVE-3110.
- CVE-3000 and CVE-3110 with glass (inner) and resin (exterior) double construction cover. To avoid distortion by organic solvents, gas contact part is made of glass.
|
Model |
CVE-2100 |
CVE-2200 |
CVE-3110 |
CVE-3000 |
|
Evaporation method |
Depressured evaporation by centrifugal force |
|||
|
Temp. control range |
OFF．RT+5 ~ 80℃ |
4 ~ 80℃ |
||
|
Rotation speed |
1400 / 1700 rpm (50/60 Hz) |
10 ~ 2000 rpm (50/60 Hz) |
||
|
Ultimate vacuum |
13.3 hPa (10mmHg) |
Build-in pump: 40 hPa External pump: 13.3 hPa |
0.13 hPa |
|
|
Vacuum pump |
Option |
Build-in diaphragm pump |
Option |
|
|
Chamber dimensions |
⏀160 x H105 mm |
⏀260 x H180 mm |
||
|
Chamber material |
SUS 304 |
SUS 304 Teflon coated |
||
|
Dimensions (W x D x H) |
240 x 260 x 230 mm |
240 x 260 x 260 mm |
326 x 349 x 397 mm |
368 x 348 x 425 mm |
|
Weight |
8kg |
10kg |
22kg |
29kg |
