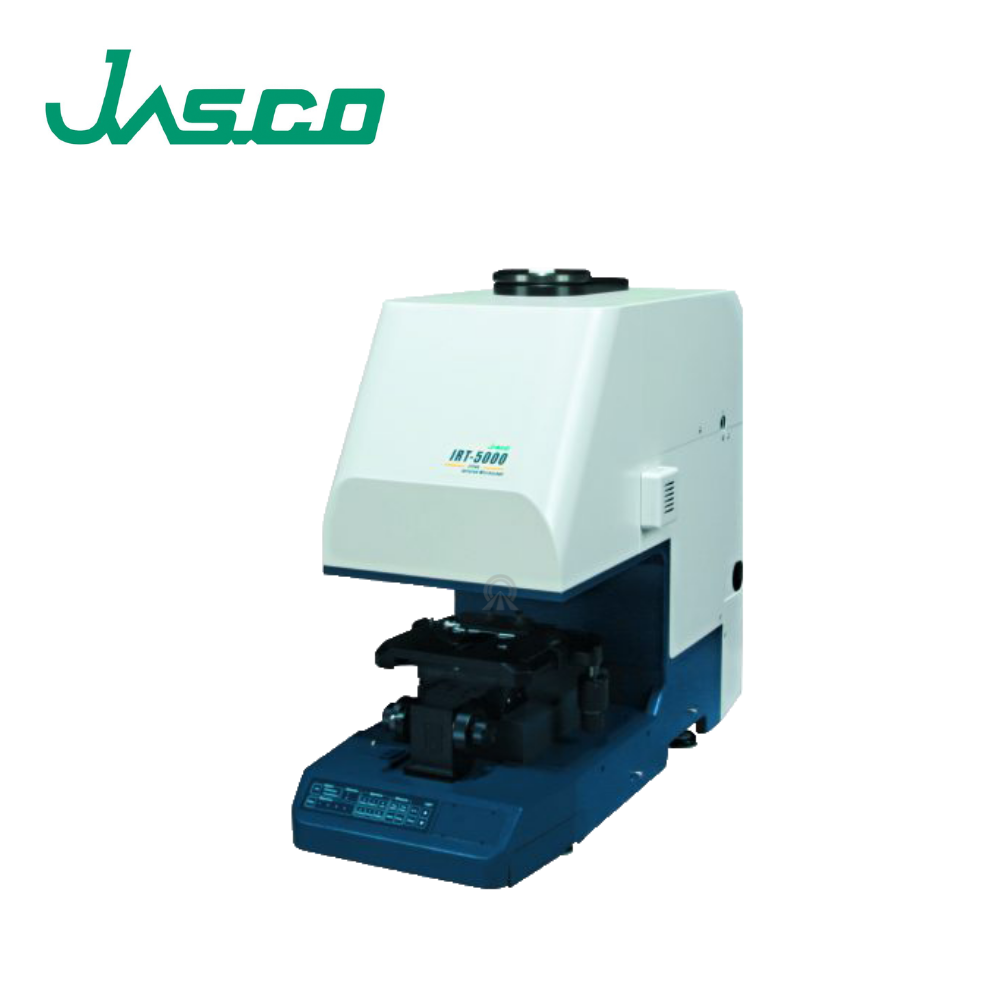

Model

IRT-5100

Principle

FTIR microscope with cassegrain optical system

Measurement Method

Transmittance / Reflectance measurement

Standard Detector

DLATGS detector (7800-400 cm ^-1 )

Detector Exchange

Dual detector capability (software controlled),

user exchangeable single element detectors are available as an option.

Optional Detectors

Single element detector:
- Narrow-band: MCT (5000-750 cm ^-1 )
- Mid-band: MCT (7800-600 cm ^-1 )
- Wide-band: MCT (7800-450 cm ^-1 )
- InSb: (15000-1850 cm ^-1 )
- InGaAs detector: (12000-4000 cm ^-1 )

S/N Ratio

Single element detector:
- 1000:1

(Aperture size 300 μm ² , resolution 4 cm ^-1 ,

 1 min. acquisition, near 2200 cm ^-1 , p-p)

Microscope Objectives

Cassegrain: 16 x 32 x or 10 x
Automatic objective recognition function (standard)
Up to four objectives can be selected by the software.

Condenser Mirror

Cassegrain: 16 x 32 or 10 x (manual exchange)
Automatic condenser mirror recognition function (standard)

Condenser Mirror Compensation

Standard auto-compensation function

Aperture

PC-controlled vertical horizontal adjustment and angle of rotation

Sample Storage

Standard:
Manual stage with fine adjustment

(Movable distance: X: 70, Y: 50, Z: 20 mm)
Option:
Auto XYZ stage with auto-focus function

(Movable distance X: 100, Y: 75, Z: 25 MM,

1 μm step Joystick for auto XYZ stage control)

Auto Focus

Option

IQ Mapping

-

Sample Observation

Standard:
High-resolution,

3 Megapixel CMOS camera with a 3X optional zoom function
IQ Monitor

(simultaneous sample measurement and observation)

and auto illumination function
Option:
5.7 inch integrated color LCD display , Binocular

Observation Options

Visible polarization observation,

Differential interference contrast observation,

Fluorescence observation
Refractive objectives: 10×, 20×

Microscope Objectives

Cassegrain 16× - standard; 10×, 32× - optional
Automatic objective recognition function is standard
Up to four objectives can be selected by the software.

ATR Measurement (Option)

"Clear-View" ATR objective (ATR-5000-SS/SD/SG) ,
conventional ATR objective (ATR-5000-D/Z/G)  ,
Stage-mounted micro ATR using transmittance light path

(ATR-5000-TPZ)

Grazing Angle Measurement (option)

Cassegrain grazing angle objective

(RAS-5000)

Purge

Sample area purge case is optional as an option.

Integrated Control Panel

Transmittance/Reflection switching with indicator;

detector indicator; objective
selection/indicator; open/close and rotation of aperture; auto-compensation of condenser mirror; visible illumination adjustment

Dimension

587 (H) × 302 (W) × 695 (D) mm, 54 kg

Power Consumption

AC 100-240 V, 50/60 Hz, max. 60 VA
