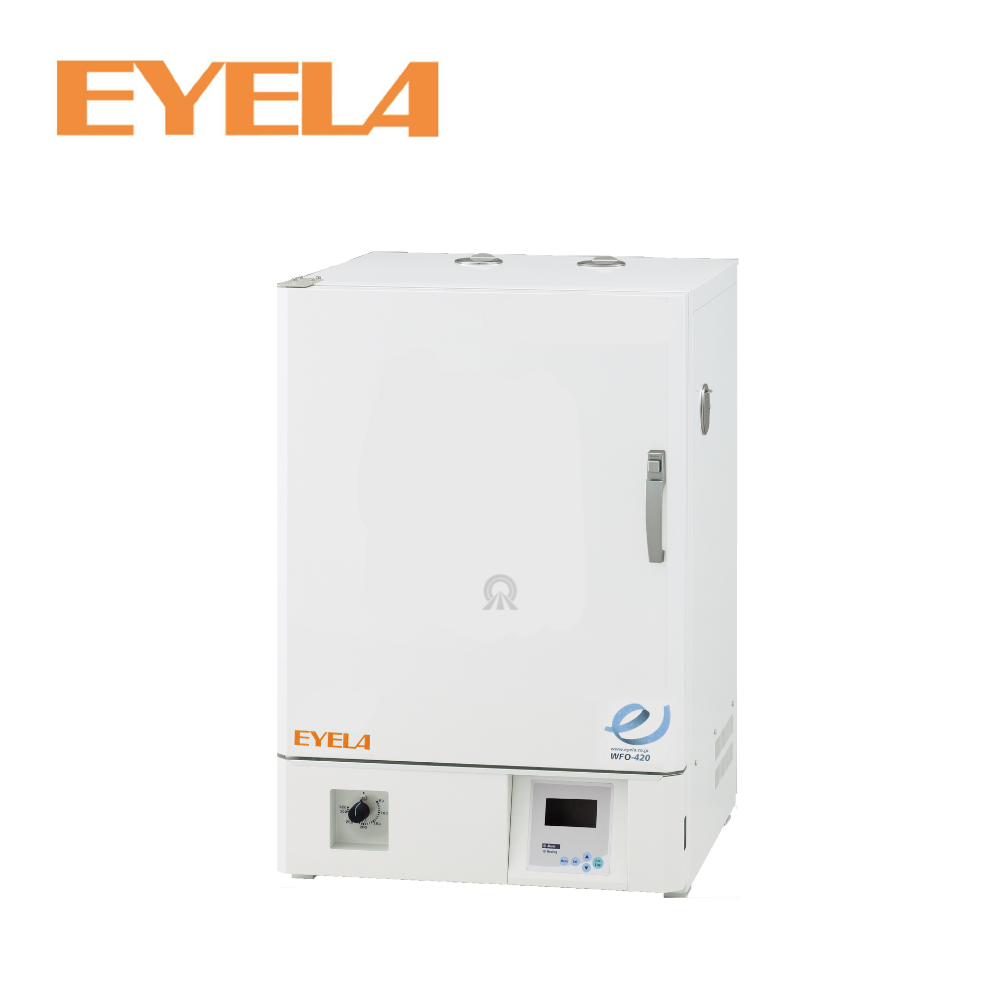

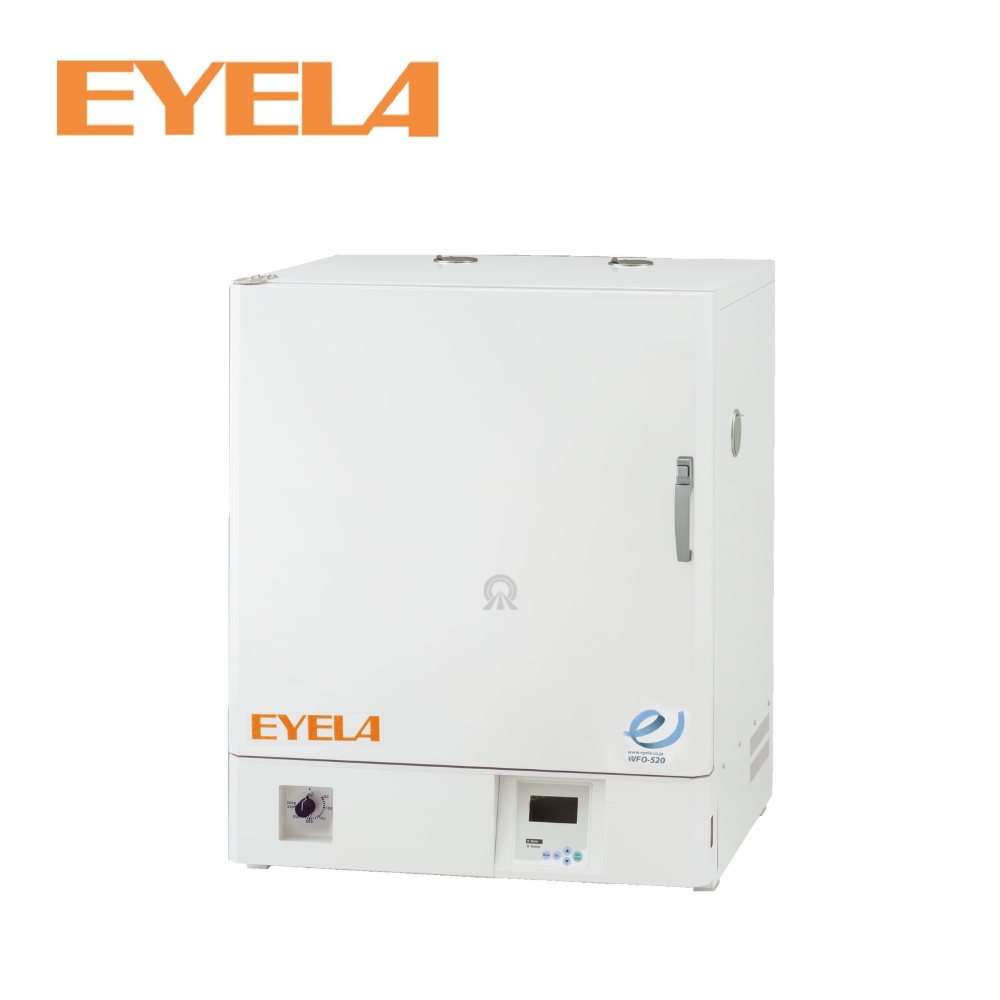

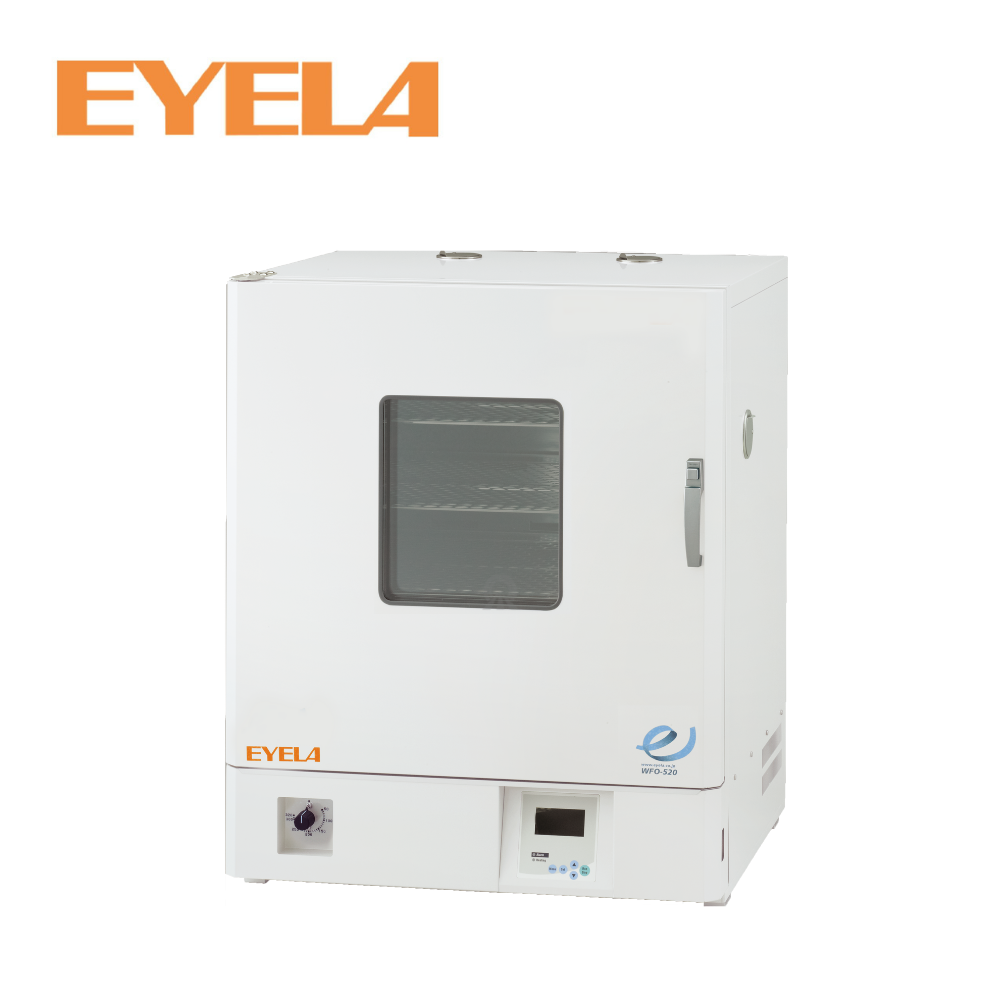

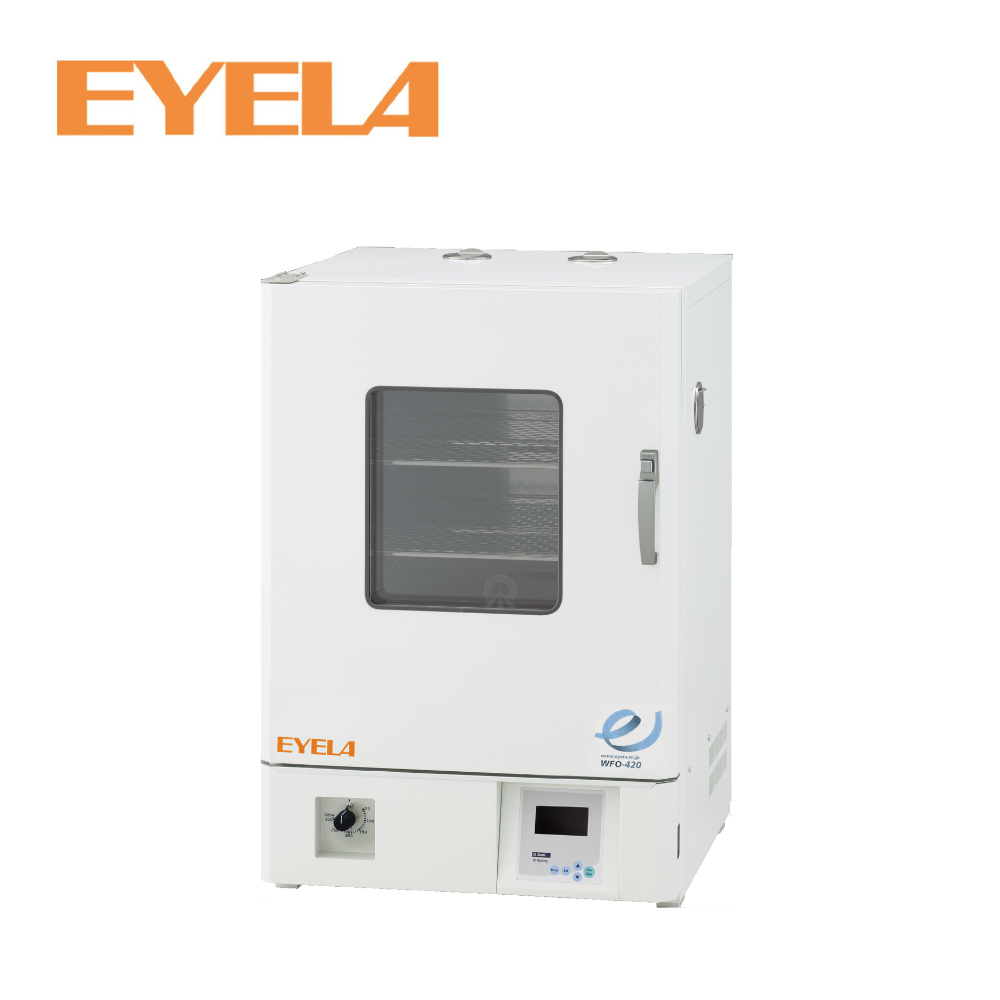

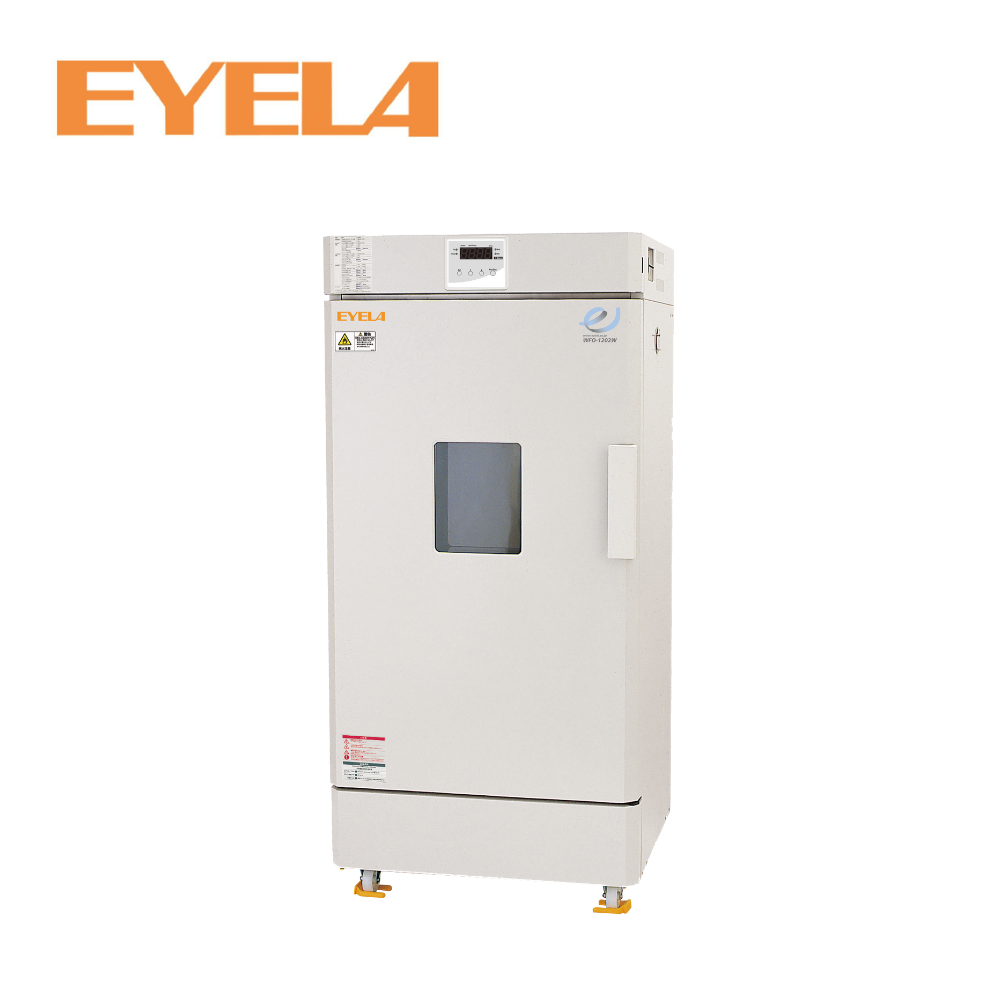

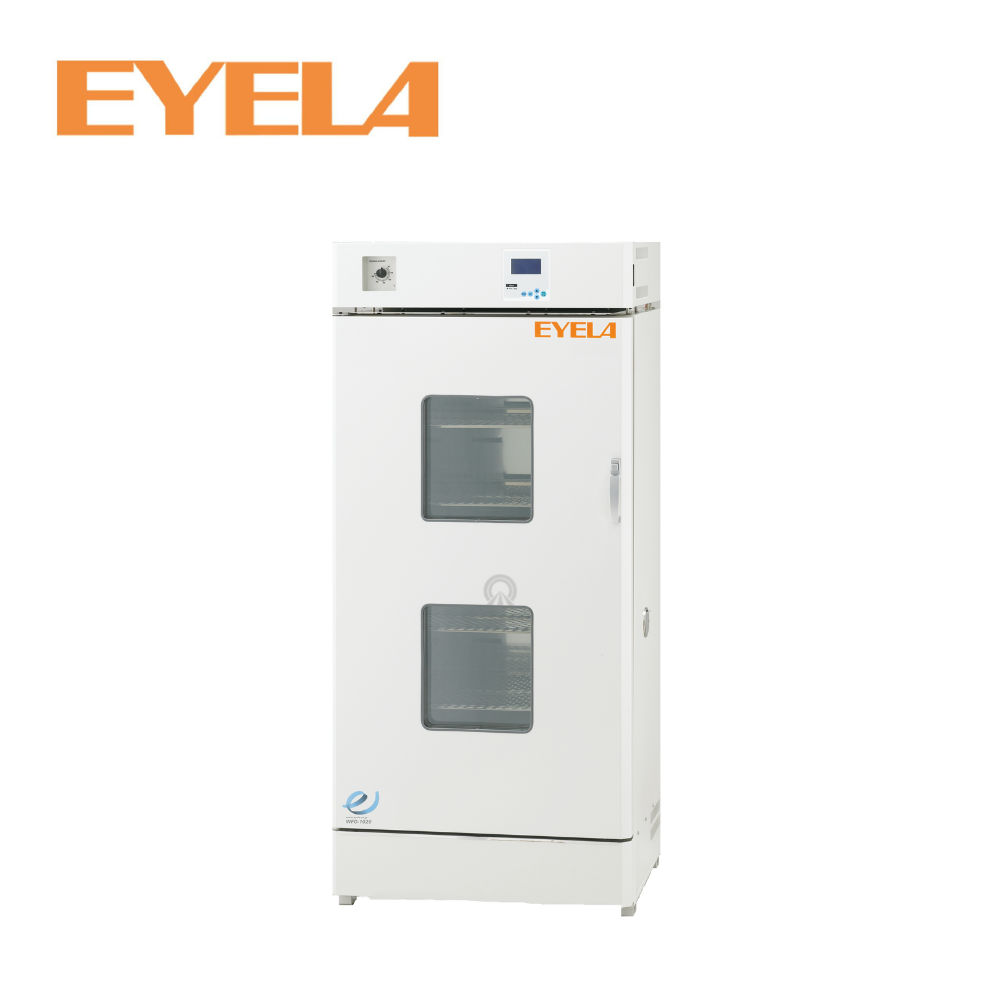

EYELA｜Forced Air Flow Oven
Feature :
- Wide operation temperature range (~270℃).
- Bright and clear liquid crystal display.
- Timer (Auto star / stop) function is provided enhances the work efficiency by operating the ovens unattended.
- Visible and audible alarm.
- Streamlined design and user friendly right or left swing door (option).
|
Model |
WFO-420 |
WFO-420W |
WFO-520 |
WFO-520W |
WFO-1020 |
WFO-1020W |
|
Air circulation |
Forced air flow |
|||||
|
Temp. control range |
RT+10 ~ 270℃ |
|||||
|
Temp. control accuracy |
± 1℃ |
|||||
|
Temp. deviation (at 270℃) |
8℃ |
9℃ |
11℃ |
|||
|
Max. temp. reaching time |
60 min |
75 min |
90 min |
105 min |
115 min |
125 min |
|
Heater |
1.2 kW |
1.3 kW |
1.8 kW |
|||
|
Chamber dimensions |
W450 x D456 x H450 mm |
W600 x D505 x H500 mm |
W600 x D500 x H1000 mm |
|||
|
Chamber capacity |
92 L |
151 L |
300 L |
|||
|
Shelf |
2 pcs. |
3 pcs. |
4 pcs. |
|||
|
Observation window |
- |
W250 x H280 mm |
- |
W250 x H280 mm |
- |
W250 x H280 mm |
|
Dimensions |
W550(565) x D593(625) x H825(836) mm |
W700(715) x D643(675) x H875(886) mm |
W700(711) x D641(671) x H1545 mm |
|||
|
Weight |
52kg |
54kg |
68kg |
67kg |
101kg |
104kg |
