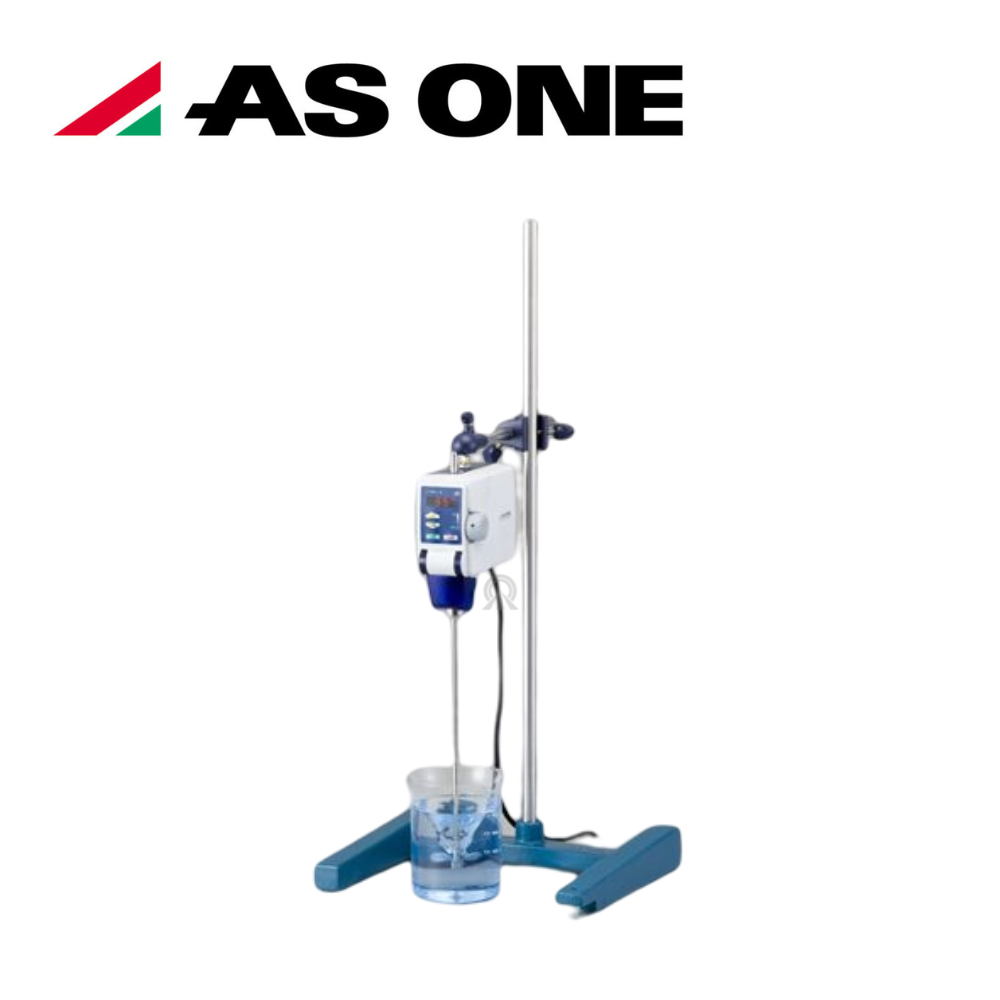

AS-ONE|Timer-attached Type Stirrer

This device is equipped with high output compact DC brushless motor boasting low coking, low vibration level and low noise level, and featuring newly designed magnetic circuit (PAT). Possible to perform stirring operations without disturbing the working environment of your laboratory.
Model : SMT Series(SMT-101、SMT-102、SMT-103、SMT-104)

Feature :

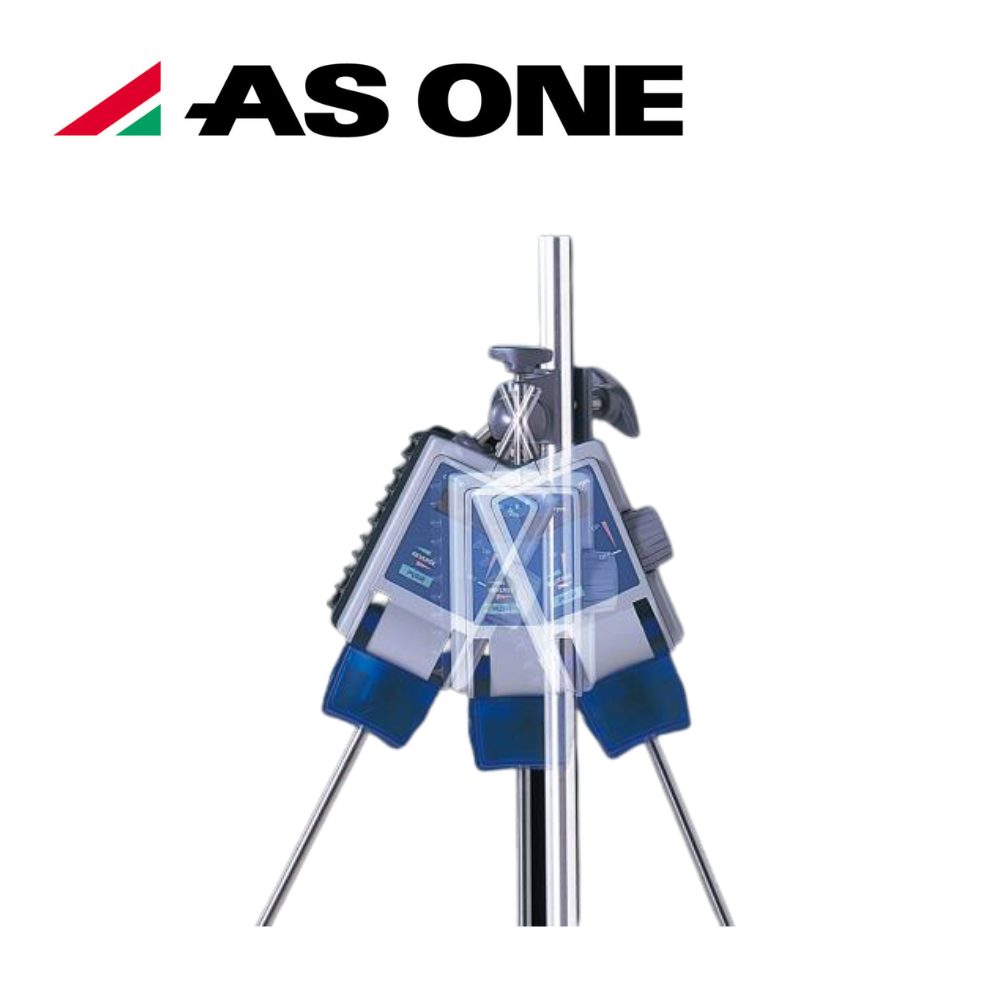

  • Free clamp mechanism: This mechanism allows you to position device easily by adjusting angle of main unit.
  • Motor operation chunk cover: If you open chunk cover, motor stops automatically to prevent entanglement accidents.
  • Speed feedback system adjusts motor operation to any load changes that occur during stirring process and maintains set rotation frequency.
  • In addition to current limit circuit, device keeps operator safe by stopping motor automatically whenever chuck cover is opened.
  • Forward and reverse operation function enables you to change direction of operation in one step even during stirring process.

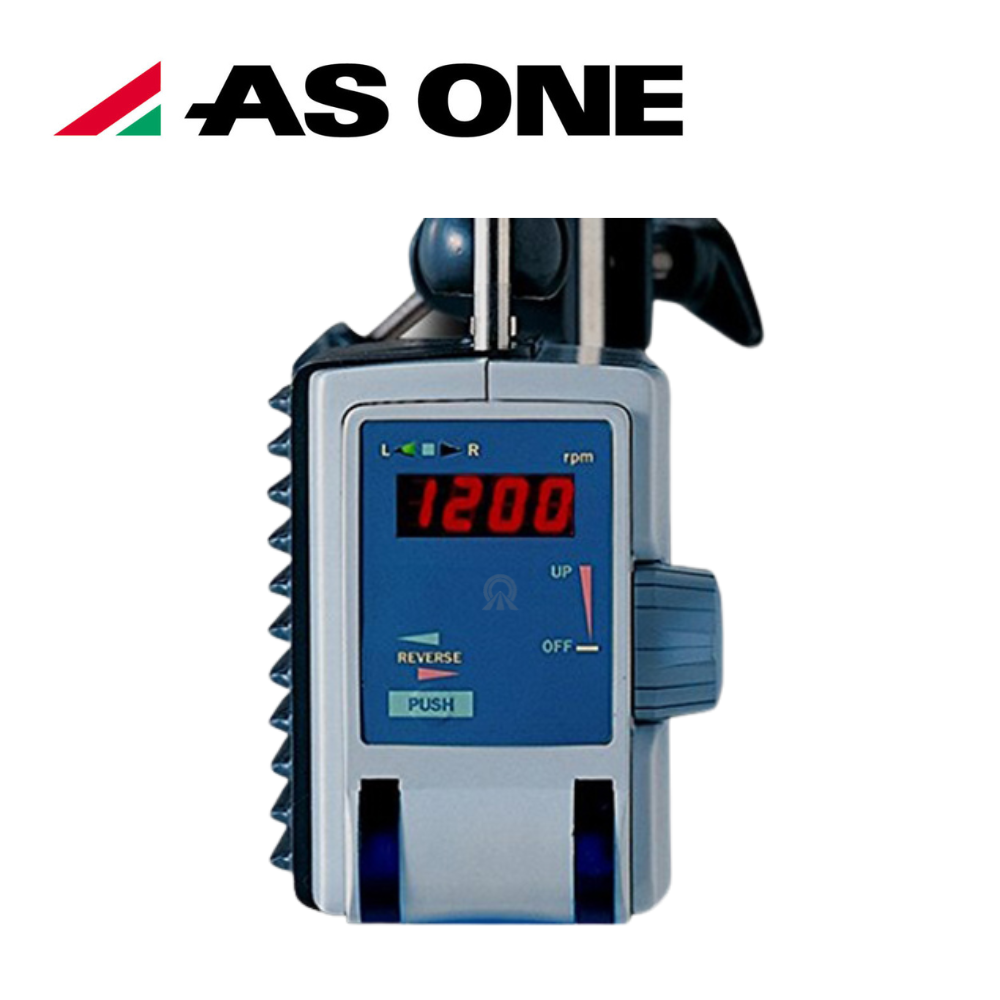

  • Volume control system with switch turning device on or off, sets rotation frequency, and is easy to operate.

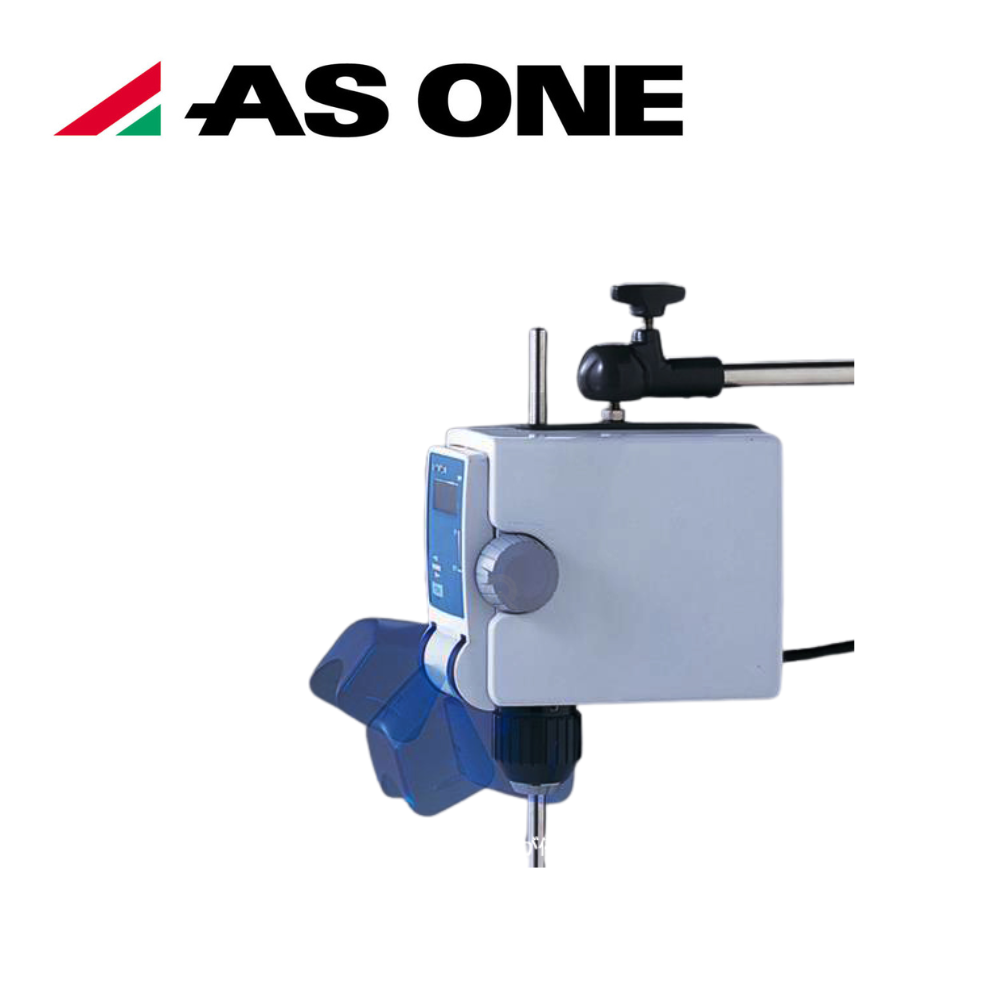

  • Control mechanism is equipped with hand-tightened chuck that does not require chuck handle. Motor lock mechanism interlocked with chuck cover allows you to operate device with one hand.

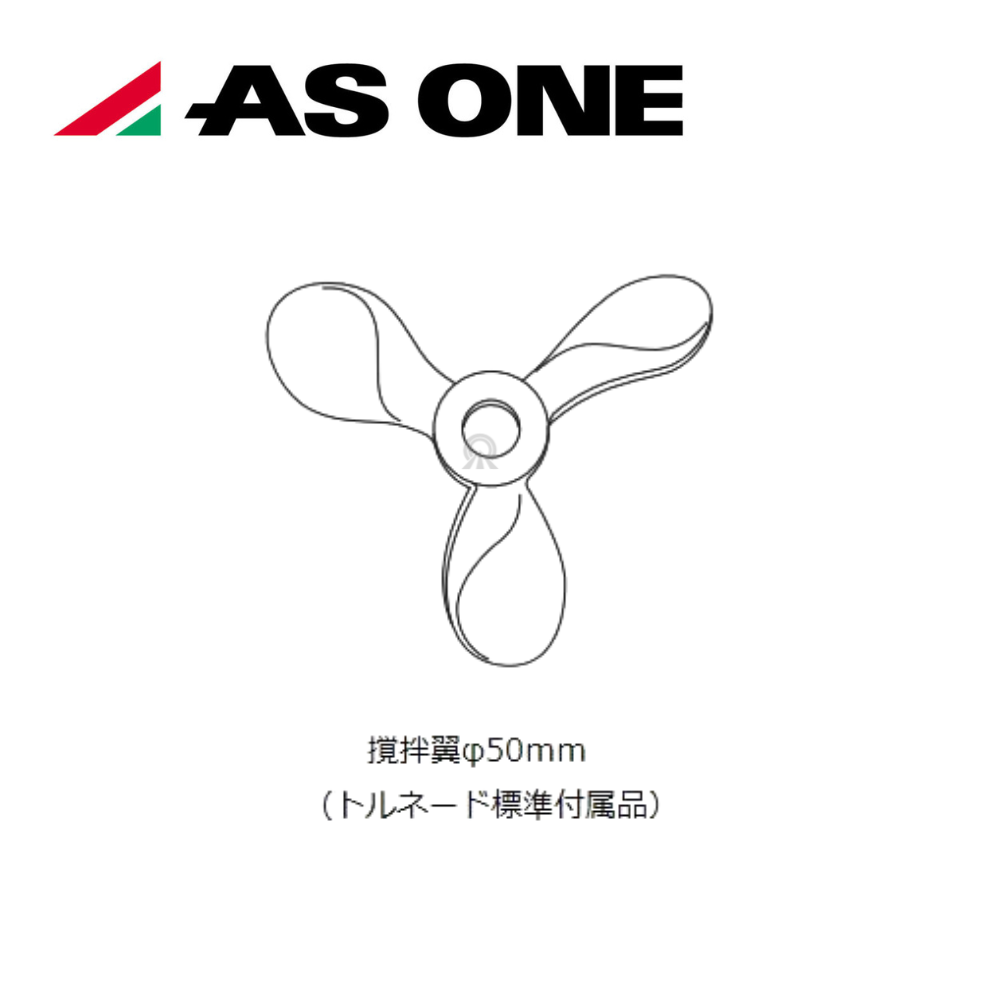

  • Stirring shaft is held by collect, ensuring firm support and reducing runout. It can rotate in forward or reverse direction. (Optional collet also allows you to modify diameter of stirring shaft.)
  • This model comes with timer as standard feature, and enables you to start or stop device automatically by setting time (1-minutes units, max. setting: 99 hours 59 minutes).
  • Timer is linked to forward and reverse operation function. Set reverse operation time and total timer operation time to start reverse operation automatically.


Model

SMT-101

SMT-102

SMT-103

SMT-104

Rotational Speed (rpm)

50~3000

20~1200

10~600

5~300

Max. Torque (N·m){kgf·cm}

0.10 {1.0}

0.25{2.5}

0.49 {5.0}

0.98 {1.0}

Rotation Control

Speed Feedback Function

Motor

DC Brushless Motor 30W(Type-B insulation / 130

Safety Function

Thermal ProtectorCurrent Control CircuitChuck Cover Linked Fail Safe Function

Function

Timer Function

ON / OFF Timer Setting RangeAutomatic Inversion Time Setting Range

Attached Function

Forward / Backward Changeover Function

Chuck

Collet-type Manual Chuck for ø8 mm

Dimension ( W x D x H )

98 x 155 x 164 mm

Weight

2.5 kg
