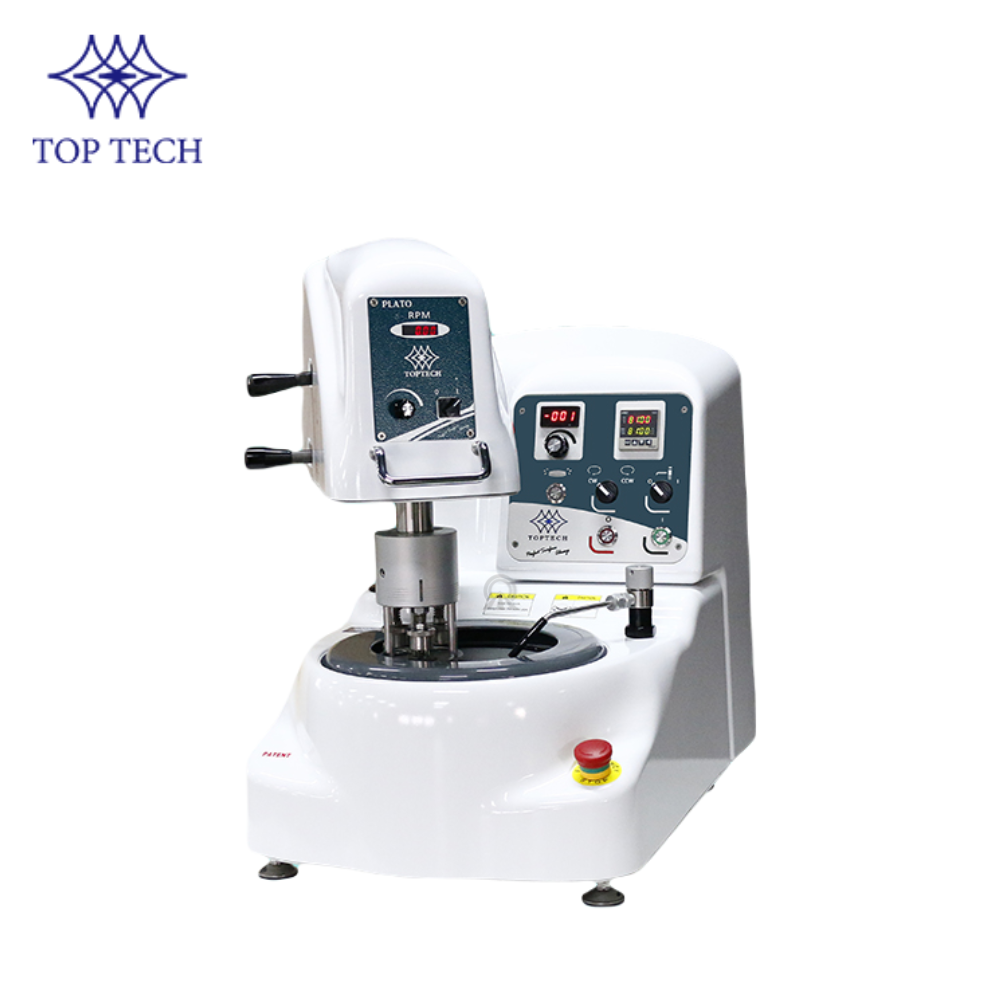

TOP TECH｜Automatic Grinding & Polishing
Feature :
- Exquisite Appearance : Streamline appearance design and glossy film surface finishing makes the mechanical appearance artistic and exquisite.
- Intuitive design and metal button operating panel : Equipped with durable high-quality metal buttons makes the design Intuitive.
- Rotational speed of the head is adjustable : The grinding head is equipped with brushless motor with rotation speed from 10~170rpm
- Dispenser (Optional) : External dispenser can precisely control polishing process and replicate the same procedure.
- Automatic drying function : The graphic visualization drying function can make the cleaning process more fast in order to avoid the cross contamination during the operating process.
- Modular design : The combined control box can be fixed behind the machine or be placed next to the machine with quick-change design, which is easy to clean and can maximize the space.
- Individual pressure (A type and B type) : The press force is 1.4~5kg which can be controlled based on the material of the specimen.
- Central pressure (C type) : The press force is 3~5kg which can be controlled based on the material of the specimen.
- Various anti-splash application : Various anti-splash covers can be applied based on the method of polishing process.
- Low speed grinding and polishing function : Grinding speed can be adjusted to a minimum of 10 rpm. With external dispenser, it can meet the need of long-time polishing without deformation.
- Various choices of platen : Platen size of 8” and 10”are suitable for any consumables application.
- Retractable water hose : Clean the machine conveniently.
|
Model |
P20G-1-A3 |
P20G-1-B3 |
P20G-1-C3 |
P25G-1-A3 |
P25G-1-B3 |
P25G-1-C3 |
|
P20G-1-A5 |
P20G-1-B5 |
P20G-1-C4 |
P25G-1-A5 |
P25G-1-B5 |
P25G-1-C4 |
|
|
Platen Size (mm) |
Ø203.2 (8”) |
Ø254 (10”) |
||||
|
Platen Quantity |
1 |
|||||
|
Grinding Method |
Individual force |
Individual force |
Central force |
Individual force |
Individual force |
Central force |
|
Calibration |
No |
Yes |
Yes |
No |
Yes |
Yes |
|
Grinding Quantity (pcs) |
3 or 5 |
3 or 4 |
3 or 5 |
3 or 4 |
||
|
Sample Size (mm) |
Ø25/Ø32/Ø40 (Special sample size can be customized) |
Ø15~Ø32 Ø20~Ø40 |
Ø25/Ø32/Ø40 (Special sample size can be customized) |
Ø15~Ø32 Ø20~Ø40 |
||
|
Force (kg) |
1.4~5 |
3~5 |
1.4~5 |
3~5 |
||
|
Platen Motor Power (W) |
400 |
|||||
|
Platen Rotational Speed (rpm) |
1~600 (Effective Rotational Speed 10~600) |
|||||
|
Head Motor Power (W) |
50 |
|||||
|
Head Rotational Speed (rpm) |
10~170 |
|||||
|
Timer (min: s) |
99:59 |
|||||
|
Machine Dimension WxDxH (mm) |
560x670x670 |
|||||
|
Machine Weight (kg)AC110V 1Ø |
69 |
70 |
||||
|
Machine Weight (kg)AC220V 1Ø |
59 |
60 |
||||
|
Standard Accessories |
Polishing Platen 1 pc, Anti-Splash Cover 2 pcs, Silicon Carbide Paper 8 pcs, Polishing Cloth 2 pcs, Aluminum Oxide Powder 100g, Filter 1 set, 500g Dispenser 1 pc, Leveler (C type only) |
|||||
|
Option |
P20F0027 Dispenser Set for One Bottle, P20F0028 Dispenser Set for Four Bottles, PA0108-1 8” Anti-Splash Cover (Manual), PA0108 10” Anti-Splash Cover (Manual), PA0108-3 8” Anti-Splash Cover (Auto), PA0108-4 10” Anti-Splash Cover (Auto), PA0108-2 Anti-Splash Cover (Full-Cover) |
|||||
