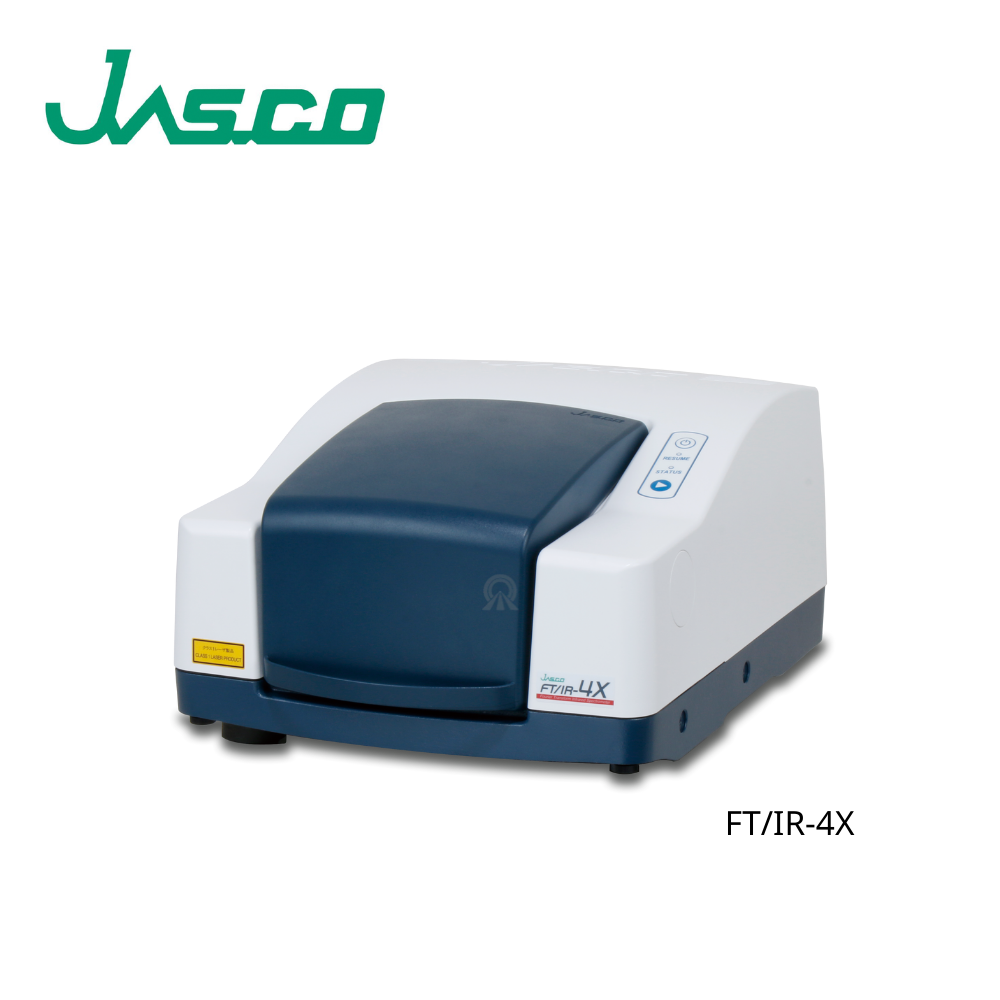

JASCO｜Fourier Transform Infrared Spectrometers║FTIR-4X

The size of FT/IR-4X is only 386 (W) × 479 (D) mm, and we have also achieved a 30 % reduction in power consumption compared to conventional models. It is research-grade in performance, functionality and expandability, and supports high resolution, high S/N, high sensitivity detectors, extending measurement wavenumber, microscopy with linear array detector, and rapid scan. The sample compartment is 200 mm wide, the same width as that of a large model, and can accommodate conventional accessories, including those from third parties.

Model : FTIR-4X

Q'ty :

Description
Specifications

Feature :

The window plate of the interferometer is made of KRS-5, which has excellent humidity resistance.
A long-life diode laser is used and a corner-cube mirror is used for the interferometer mirror.
Equipped with NIST traceable Polystyrene and Enables to perform the daily check automatically.
Ribbed aluminum casting optical base with vibration-proof mounting.
Automatically switching 2nd detector (MCT, InGaAs, etc) is also available.
The rapid scan measurement at 80 spectra/sec is applicable.
Compatible with Near-Mid IR and Mid-Far IR options.

Video :

Model	FT/IR-4X
Measurement wavenumber range	7800 to 350 cm^-1
Measurement wavenumber extended range (optional)	11500 to 375 cm^-1 (NMIR-4X) 6000 to 220 cm^-1 (MFIR-4X-N) 6000 to 50 cm^-1(MFIR-4X-W)
Resolution	0.4, 0.5, 1.0, 2.0, 4.0, 8.0, 16.0 cm^-1
Signal-to-noise ratio	35000 : 1
Detector	Standard: DLATGS (with peltier temperature control) Optional: MCT-N, MCT-M, MCT-W, MCT-PV, InGaAs, Broad band DLATGS , PAS (PC switching, User exchangeable)
Beam splitter	Standard: Ge/KBr Optional: Broad band KBr, Mid-Far IR broad band (not interchangeable)
Light source	Standard: High-intensity ceramic source Optional: Halogen lamp (PC switching)
Interferometer	45 degrees Michelson interferometer with corner-cube mirror,sealed structure (KRS-5 window), auto-alignment mechanism, DSP control
Purging	Standard: Sample/detector compartment Optional: Interferometer
A/D converter	24 bit A/D converter
Drive method	Mechanical bearing, electromagnetic drive
Drive speed	1, 2, 3, 4 mm/sec. Rapid scan: 32, 64 mm/sec.
Rapid scan(optional)	80 spectra/sec. (16 cm^-1 resolution)
Communication	USB 2.0
Vibration-proof	Vibration-proof design mounting
iQX accessory	Standard
Start button	Standard
Dimensions and weight	386 (W) × 479 (D) × 254 (H) mm, 18 kg
Required power	AC 100 to 240 V, 50/60 Hz, maximum 100 VA
Operation environment	Temperature: 17 to 27 °C / humidity: less than 70 %
