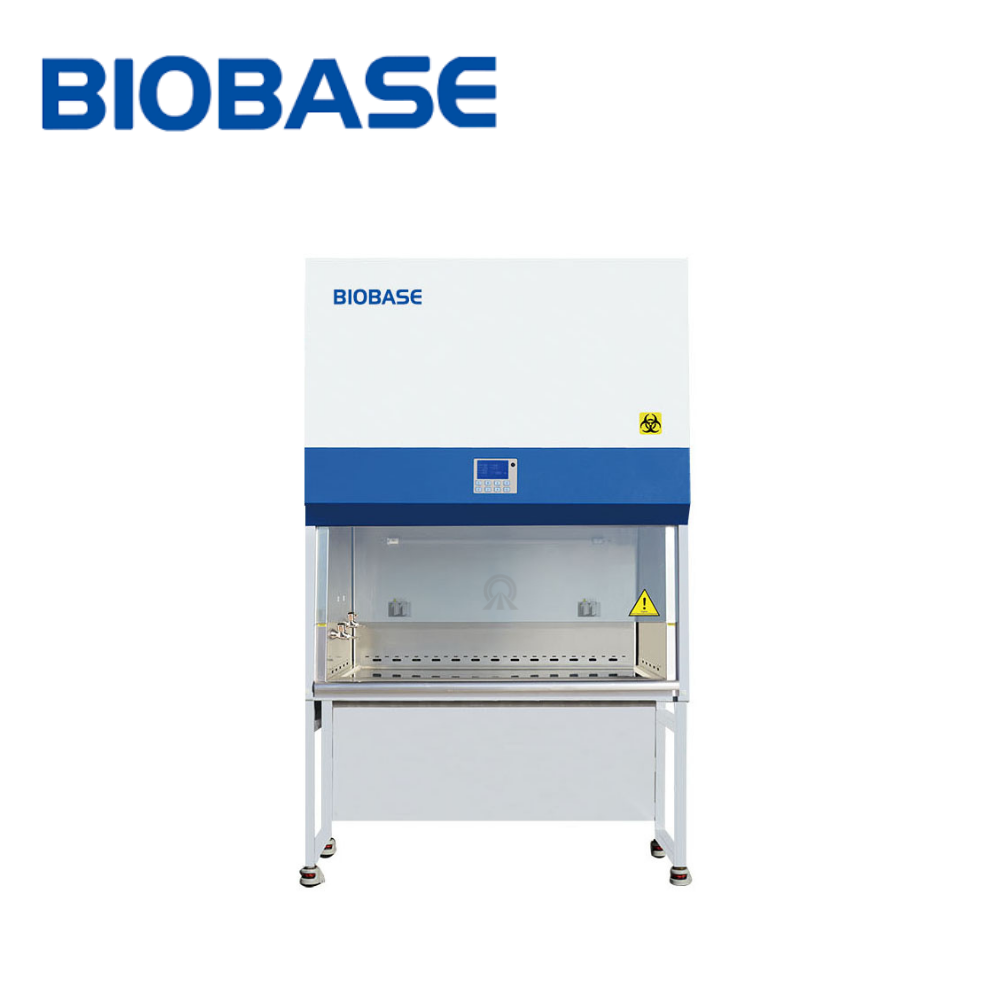

BIOBASE｜NSF Certified Class II A2 Biological Safety Cabinet
Feature :
- Three protection: operator, sample and environment.
- Airflow system: 70% air recirculation, 30% air exhaust
- A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
|
Model |
BSC-4FA2(4') |
BSC-3FA2-GL / NA(3') |
BSC-4FA2-GL / NA(4') |
BSC-6FA2-GL / NA(6') |
|
|
Ext. Size(W x D x H) |
1383 x 775 x 2295 mm |
1087 x 775 x 2265 mm |
1383 x 775 x 2295 mm |
1873 x 775 x 2295 mm |
|
|
Int. Size(W x D x H) |
1210 x 600 x 660 mm |
910 x 600 x 660 mm |
1210 x 600 x 660 mm |
1700 x 600 x 660 mm |
|
|
Work Surface Height |
750mm |
||||
|
Max Opening |
550mm (22”) |
520mm(20.5”) |
550mm (22”) |
550mm (22”) |
|
|
Tested Opening |
Safety height 200mm (8”) |
Safety height 254mm (10”) |
Safety height 254mm (10”) |
Safety height 254mm (10”) |
|
|
Airflow Volume |
Inflow |
462m3/h(272cfm) |
441m3/h(259cfm) |
587m3/h(346cfm) |
824m3/h(485cfm) |
|
Down flow |
65%:863m3/h(507cfm) |
60%:649m3/h(382cfm) |
60%:863m3/h(507cfm) |
60%:1212m3/h(713cfm) |
|
|
Exhaust |
35%:462m3/h(272cfm) |
40%:441m3/h(259cfm) |
40%:587m3/h(346cfm) |
40%:824m3/h(485cfm) |
|
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
||||
|
HEPA Filter |
Two, 99.999% efficiency at 0.3μm, filter life indicator |
||||
|
Filter Guard Type |
Aluminum alloy frame |
||||
|
Noise |
NSF 49≤67 dB/EN 12469≤65 dB |
||||
