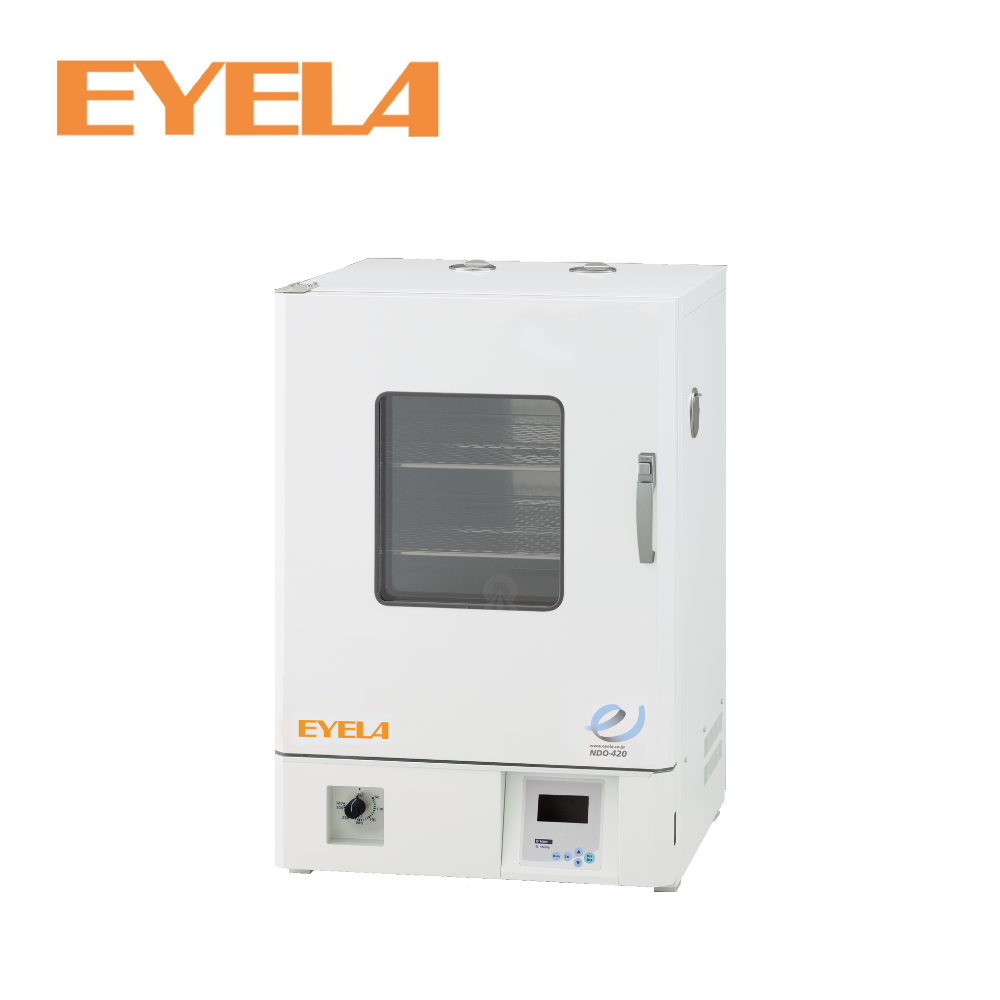

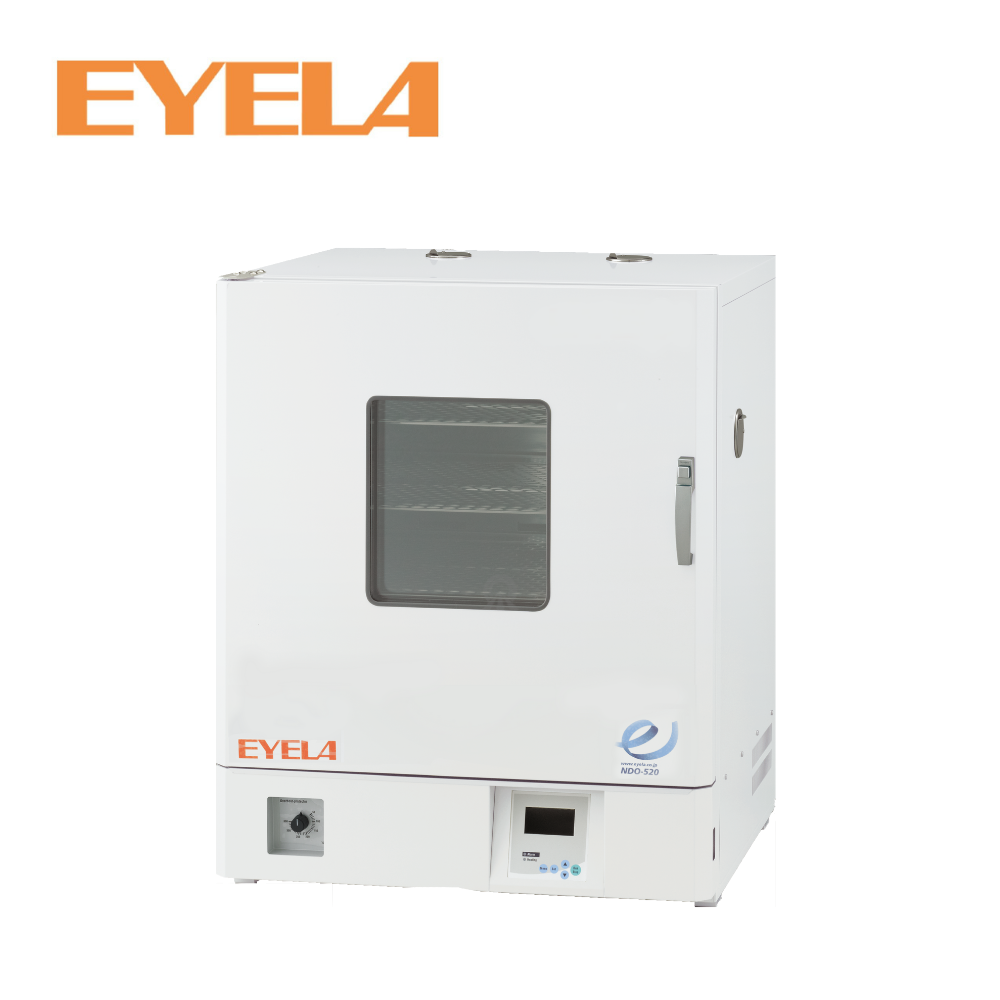

EYELA｜Convection Oven
Feature :
- Convection oven 420 & 520 series are easy to use natural convection drying oven providing max. 300℃ temperature control.
- Independent variable overheat protector is provided.
- Alarm display and buzzer are provided to indicate abnormal operating condition like temp. over limit, sensor malfunction.
- Timer (Auto start / stop) function is equipped.
- Temperature compensation function is provided.
- Open side of the door can be changed (option).
|
Model |
NDO-420 |
NDO-420W |
NDO-520 |
NDO-520W |
|
Air circulation |
Natural convection |
|||
|
Temp. control range |
RT+10 ~ 300℃ |
RT+10 ~ 270℃ |
RT+10 ~ 300℃ |
RT+10 ~ 270℃ |
|
Temp. control accuracy |
± 1℃ |
|||
|
Temp. deviation |
11℃ (at 270℃) |
12℃ (at 270℃) |
||
|
Max. temp. reaching time |
115 min (~300℃) |
110 min (~270℃) |
115 min (~300℃) |
100 min (~270℃) |
|
Timer functions |
Timer (Auto start / stop), 1step, 2 step mode |
|||
|
Safety functions |
Door alarm, sensor alarm, upper/lower temp. limit alarm, leak / overcurrent braker, independent variable overheating protector, SSR malfunction |
|||
|
Chamber dimensions |
W450 x D480 x H450 mm |
W600 x D544 x H500 mm |
||
|
Chamber capacity |
97 L |
163 L |
||
|
Shelf |
2 pcs. |
3 pcs. |
||
|
Observation window |
- |
W250 x H280 mm |
- |
W250 x H280 mm |
|
Dimensions |
W550(565) x D593(625) x H825(836) mm |
W700(715) x D643(675) x H875(886) mm |
||
|
Weight |
51kg |
53kg |
65kg |
67kg |
